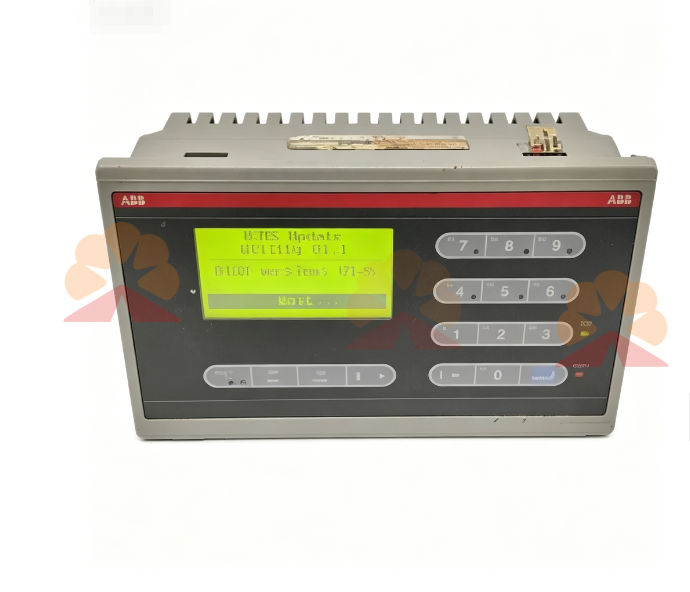

The ABB CP410M is legacy compact text‑graphic operator terminal of ABB CP400 HMI family, mainly matched with AC500 PLC for small‑and‑medium automation projects. This unit adopts 3‑inch monochrome STN‑LCD screen with LED backlight, supporting 20 characters per line and total 10 display lines, equipped with 16 customizable mechanical function keys with long service life, each key can withstand more than 500,000 pressing operations. It serves as local human‑machine interaction unit for on‑site operators to view real‑time process values, modify operating parameters, check fault alarm records and execute manual operation commands.

Power supply adopts 24VDC ±15% power input, power consumption below 8VA. Front‑face protection grade reaches IP65 / NEMA4X for indoor cabinet door installation, resisting workshop dust and liquid splashing; rear side keeps IP20 protection for inside‑cabinet environment. Built‑in RS232/RS422/RS485 multi‑functional serial communication port supports Modbus‑RTU and Modbus‑ASCII protocols to realize data interaction with PLC, inverters and other automation devices. User project configuration is completed by CP400Soft configuration software, supporting program download/upload, password authority management with multi‑level user access control. 4MB flash memory stores application project, real‑time clock function records alarm occurrence time stamp.

Compact cabinet flush‑mount installation mode is adopted, installation cut‑out dimension is 160.8×93.3mm. On‑site maintenance technicians can complete disassembly and replacement according to installation specifications. After hardware swapping, pre‑compiled project files can be downloaded without large‑scale modification to control system. Operating ambient temperature ranges from 0℃‑50℃, storage temperature ‑10℃‑60℃, adapting to ordinary industrial workshop environments.

It is widely deployed in packaging machinery, food‑beverage equipment, textile machines and pulp‑paper auxiliary production lines. Typical application scenarios include local operation station for small automation sets, hardware renewal for aging equipment and spare‑parts stocking for continuous‑running production assets. Once CP410M malfunctions, local on‑site monitoring and manual operation functions will be lost, which will affect on‑site emergency handling efficiency. Equipping qualified spare operator panels effectively mitigates operation risks caused by HMI hardware faults.

Every ABB CP410M passes strict pre‑delivery functional tests including power‑on aging test, keyboard key‑life inspection, display performance verification and serial communication simulation test. Products adopt shock‑resistant anti‑static export‑grade packaging with traceable logistics records. Original datasheet is not attached by default; relevant technical documentation can be provided upon request. Mixed consolidated shipment is available alongside other ABB AC500 and CP400 series spare parts for one‑stop spare‑parts procurement for plant operators.
