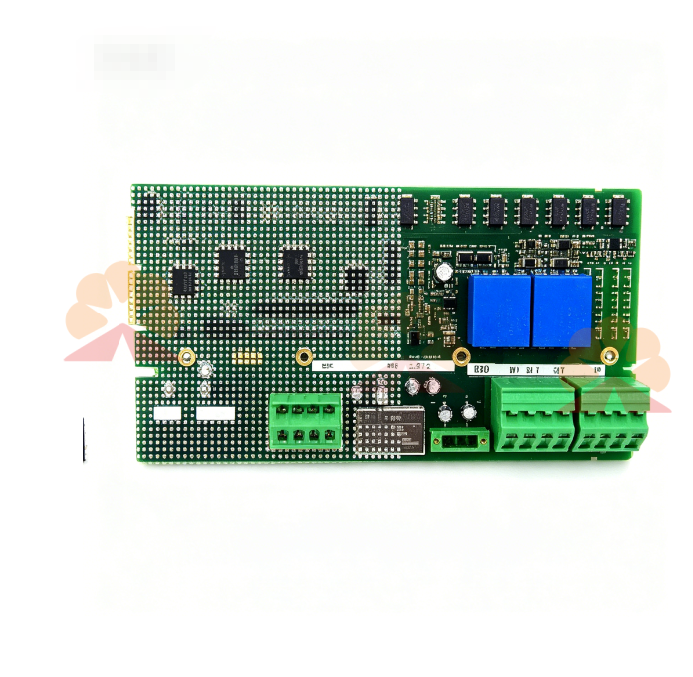

The ABB BVC1HRA010902P (BIVECTOR535‑08) is a cabinet‑mount digital AC servo drive within ABB Bivector 500 motion‑control family, designed to drive BVC series permanent‑magnet brushless servo motors for legacy automation production lines. It receives three‑phase 400VAC main power and independent single‑phase 230VAC auxiliary power, delivering 8.8A rated three‑phase output current to execute high‑dynamic motor motion regulation. This unit is widely used for spare‑parts replacement and equipment renovation of old‑style automation equipment, playing a core role in multi‑axis positioning, synchronous transmission and tension control processes.

This servo drive supports three standard control modes: position control, speed control and torque control. Parameter setup, tuning and diagnosis can be completed via serial communication port and PC debugging software. Rich analog and digital I/O channels can receive external sensor signals and output drive status and fault alarm signals to upper‑level PLC. Built‑in RS232 and RS485 interfaces support multi‑drive networking, realizing parameter copy between multiple identical units to shorten equipment commissioning cycle. Integrated fault memory function stores historical abnormal records to help maintenance technicians quickly locate failure root causes during on‑site troubleshootingeero。

Multiple hardware protection functions are embedded inside the drive, including over‑current, over‑voltage, over‑temperature and motor overload protection. When abnormal conditions occur, the drive triggers safe hardware lock‑out and outputs corresponding fault codes. Optimized EMC circuit layout strengthens anti‑interference performance, effectively restraining surge voltage and electromagnetic noise inside industrial cabinets. It can operate stably within ambient temperature range of 5‑40℃, requiring sufficient cabinet heat‑dissipation space for long‑term continuous running。

The whole unit adopts compact metal cabinet‑mount installation structure. When drive hardware ages or fails, technicians can complete disassembly and replacement following wiring specifications. After swapping, pre‑saved parameter files can be imported without complex repeated tuning, lowering on‑site maintenance technical threshold. Typical application scenarios include spare‑parts renewal for aging machine‑tool axes, packaging and textile production‑line overhaul, and spare‑parts stocking for critical continuous‑run automation sets. Once BVC1HRA010902P malfunctions, matched servo motor will lose motion‑control capacity, leading to axis stop and production halt. Equipping qualified spare drives can effectively mitigate unexpected production‑loss risks.

Every ABB BVC1HRA010902P passes strict pre‑delivery functional tests including power‑on aging test, output‑current characteristic inspection, I/O channel verification and communication‑function simulation test. Products adopt shock‑resistant anti‑static export‑grade packaging with traceable logistics records. Original datasheet is not attached by default; relevant technical documentation can be provided upon request. Mixed consolidated shipment is available alongside other ABB Bivector‑series servo spare parts for one‑stop spare‑parts procurement for plant operators.
