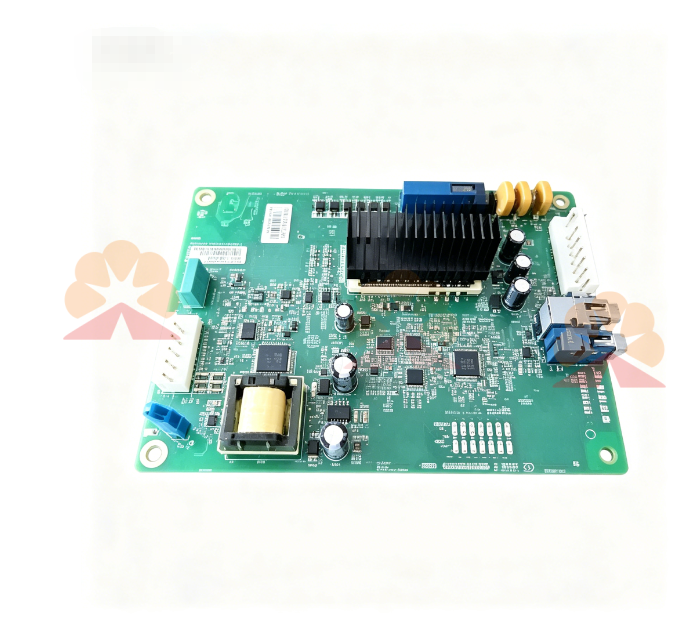

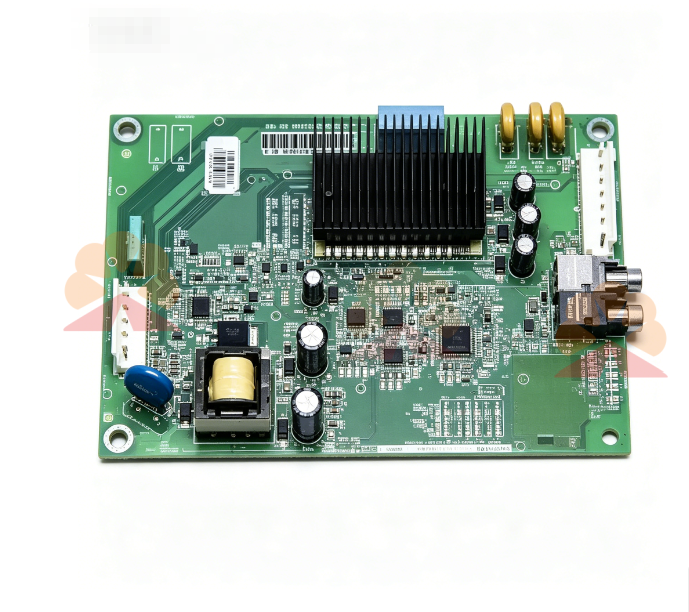

The ABB AFIN‑02C motor control board is a core PCB spare part for ACS800 series variable‑frequency converters, serving as upgraded replacement for legacy AFIN‑01C unit with full backward compatibility. It undertakes critical signal processing and motor control logic inside the drive cabinet. Receiving instruction signals from upper‑level main control unit, it completes closed‑loop speed‑torque arithmetic calculation, generates modulation control signals for power unit, and collects operating feedback data from power electronic components. It is the key intermediate hardware linking main controller and power stack, directly determining drive running stability and motor control precision.

This board adopts industrial‑grade circuit layout for heavy‑duty variable‑speed working scenarios. It supports real‑time monitoring of drive internal status, detecting abnormal conditions such as signal deviation, hardware over‑temperature and pulse output faults. On‑board LED indicator lamps intuitively display power‑on state and fault codes, helping maintenance technicians rapidly locate failure points during on‑site troubleshooting and shorten equipment repair cycle. Built‑in signal filtering and suppression circuits effectively restrain electromagnetic noise, voltage surge and ground‑loop interference inside high‑power converter cabinets, improving anti‑interference performance under complex industrial field environments.

Designed as plug‑in printed circuit board assembly, it can be installed and fixed inside ACS800 power unit frame. When original control board suffers aging damage, field operators can finish disassembly and spare‑parts replacement following standard operation procedures. Thanks to complete backward compatibility, extra hardware modification or program adjustment is not required after replacement, lowering technical threshold for drive overhaul. This advantage is quite valuable for process industries requiring long‑time continuous production.

It is extensively deployed in metallurgical rolling mill drives, thermal power large pump‑fan variable‑speed equipment and pulp‑paper heavy‑transmission converter cabinets. Typical application scenarios include spare‑parts renewal for aging ACS800 drive sets, on‑site hardware replacement after board failure, and critical production equipment spare‑parts stocking. Once AFIN‑02C malfunctions, the converter will lose normal motor regulation capacity, triggering drive fault locking‑up or system trip. Equipping qualified spare boards can greatly mitigate unexpected production‑loss risks caused by control hardware failure.

Every ABB AFIN‑02C passes strict pre‑delivery functional tests including power‑on aging test, internal signal simulation, backplane communication verification and fault‑state simulation inspection. Products adopt anti‑static shock‑resistant export‑grade packaging with traceable logistics records. Original datasheet is not attached by default; relevant technical documentation can be provided upon request. Mixed consolidated shipment is available alongside other ABB ACS800 series drive spare parts for one‑stop spare‑parts procurement for plant operators.
