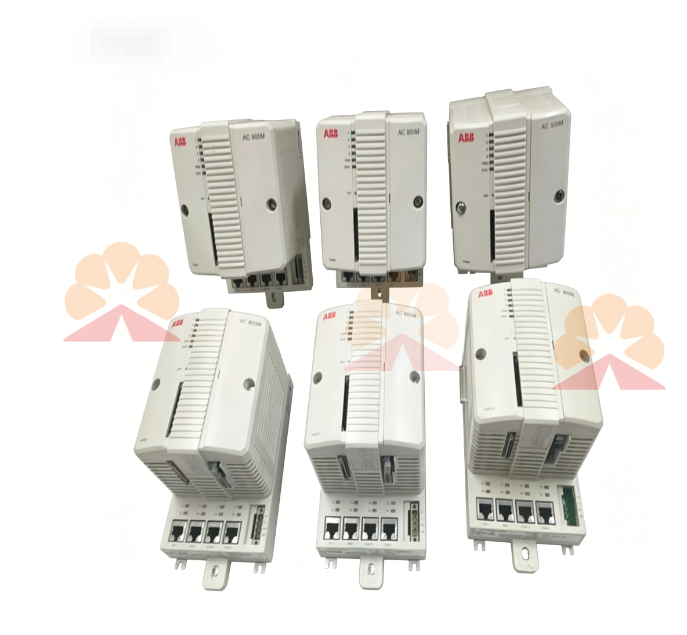

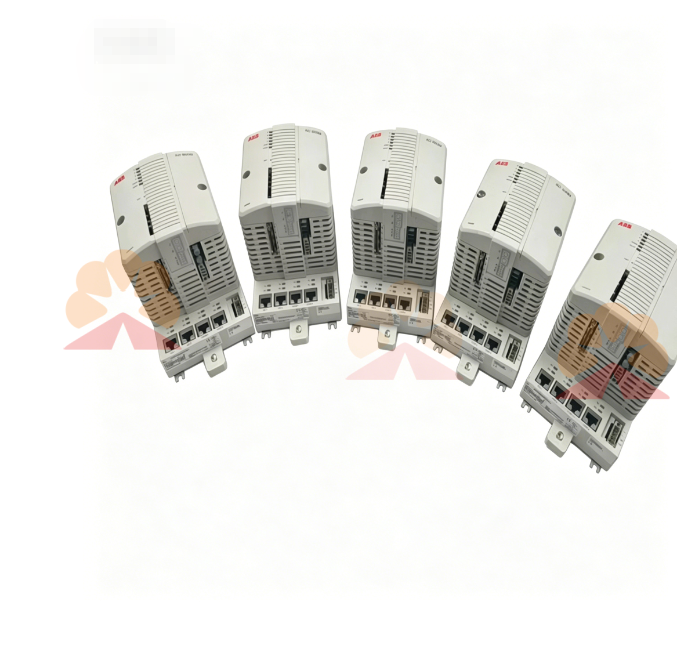

The ABB PM864AK01 serves as core redundant processor unit of AC 800M automation system, widely used within System 800xA distributed control sets for process industries. This rack‑mount controller module undertakes user program execution, analog closed‑loop regulation, logical arithmetic computation and internal CEX‑bus scheduling. It collects field signals from various I/O modules, completes real‑time control calculation, and outputs control commands to drive valves, motors and other on‑site actuators, which lays the foundation for stable operation of whole production control loops.

This processor unit supports standard IEC‑61131‑3 programming specification and works with Compact Control Builder engineering software. It is equipped with ample memory resources to handle multi‑task control programs for complex process workflows. The hardware supports 1:1 hot‑standby redundant configuration; when primary CPU fails, system can realize fast bumpless switch‑over to standby unit, avoiding sudden halt of control logic for critical continuous‑run production assets. Dual Ethernet ports support network redundancy, improving reliability of upper‑level system communication. Meanwhile, serial communication channels realize point‑to‑point connection with debugging tools and auxiliary field instruments.

On‑board LED status indicators intuitively display power‑on status, program running state and hardware fault codes, helping maintenance technicians rapidly locate abnormal points during on‑site troubleshooting. CompactFlash slot supports application program storage and convenient firmware upgrade. Built‑in hardware filtering and isolation circuits effectively restrain ground‑loop noise, voltage surge and electromagnetic interference generated inside heavy‑industry cabinets, adapting to harsh working conditions of thermal power plants, metallurgical smelting workshops and pulp‑paper production lines.

Adopting standardized subrack plug‑in mechanical design, this processor unit can be directly installed onto matching baseplate. When hardware aging failure occurs, operators can finish disassembly and spare‑parts swap following operation specifications without large‑scale system reconstruction. Typical application scenarios include new AC 800M system configuration, redundant control cabinet construction, hardware renewal for aging DCS racks and spare‑parts stocking for key production facilities. Once this processor unit breaks down, the whole control rack will stop executing control logic, leading to loss of field signal processing and output functions. Equipping qualified spare processor units greatly mitigates risks of unexpected production shutdown.

Every ABB PM864AK01 undergoes strict pre‑delivery functional tests including power‑on aging test, backplane bus communication verification, logic operation accuracy inspection and redundancy switch‑over simulation test. Products adopt shock‑resistant export‑grade packaging with traceable logistics records. Original datasheet is not attached by default; relevant technical documentation can be provided upon request. Mixed consolidated shipment is available alongside other ABB AC 800M series modules for one‑stop spare‑parts procurement for plant operators.
