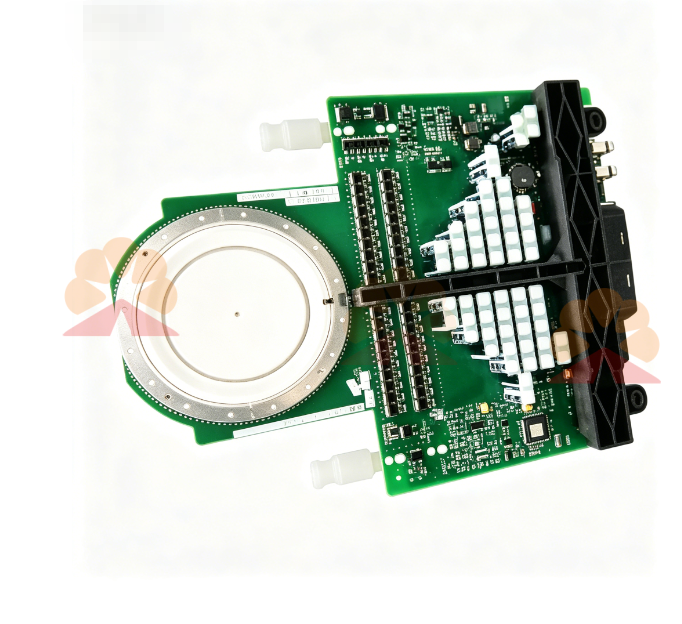

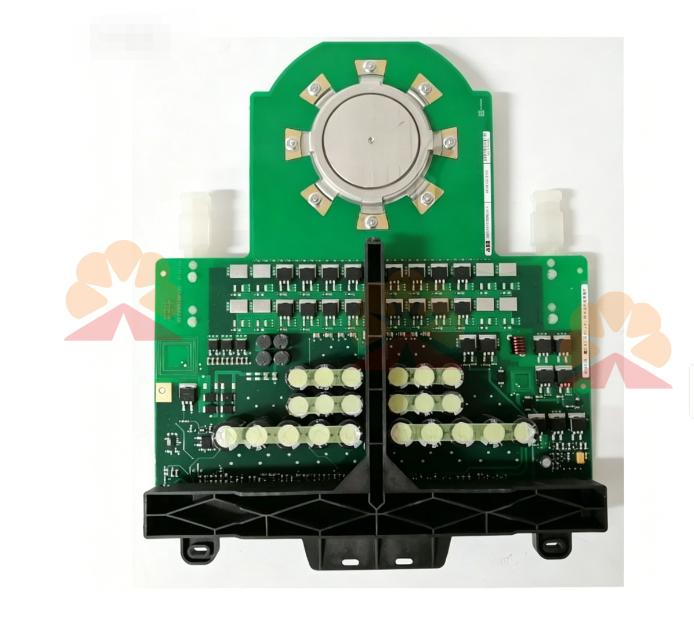

The ABB 5SGY3545L001 is a complete integrated IGCT power assembly tailored for ACS6000 series medium‑voltage frequency converters. It combines press‑pack IGCT power chip, gate trigger circuit, signal sampling and auxiliary power‑supply components into one integral unit, serving as the core power switching component inside medium‑voltage converter power cabinets. Different from discrete separate semiconductor and gate drive spare parts, this finished assembly simplifies on‑site maintenance work, realizing AC‑DC‑AC energy conversion for large‑capacity motors and power quality adjustment equipment.

This integrated power assembly adopts snubber‑less hard‑drive technical solution. It receives optical fiber control commands sent by upper‑level main control board, outputs high‑current gate trigger pulse to realize fast turn‑on and forced commutation turn‑off of IGCT chip. It can bear high‑voltage and large‑current impact under heavy‑load working conditions, with low conduction loss and excellent thermal cycling resistance. The press‑pack mechanical structure supports double‑sided heat dissipation, cooperating with converter water‑cooled or air‑cooled radiator to export accumulated heat during long‑time continuous operation.

Built‑in multi‑level hardware monitoring and fault diagnosis circuit can detect working state anomalies such as drive power deviation, trigger pulse abnormality and semiconductor over‑temperature. On‑board status indicators directly display unit running and fault information, helping maintenance technicians quickly locate abnormal points during on‑site troubleshooting. Optical fiber isolation design thoroughly separates low‑voltage control loop and high‑voltage power loop, effectively restraining ground loop noise, voltage surge and electromagnetic interference inside high‑power cabinets, improving overall system stability for complex industrial sites.

This integrated assembly is installed as a whole module inside the power unit cabinet. When components age and fail, operators can complete overall unit disassembly and replacement according to specified torque requirements, without separately matching semiconductor chips and drive boards, lowering technical threshold for field maintenance. It is widely applied in metallurgical rolling mill medium‑voltage drives, large pump‑fan energy‑saving variable‑speed equipment, pulp‑paper heavy‑duty transmission sets and power‑grid reactive‑power compensation devices. Typical scenarios include new power unit assembly, aging converter hardware renewal and critical production equipment spare‑parts stocking. Once this assembly fails, corresponding power conversion branch will be out of service, triggering converter fault locking or trip shutdown. Equipping qualified spare assemblies can effectively mitigate unexpected production loss risks.

Every ABB 5SGY3545L001 passes strict pre‑delivery tests including power‑on aging test, optical fiber trigger function verification, switching characteristic inspection and fault‑state simulation test. Products adopt anti‑static shock‑resistant export‑grade packaging with traceable logistics records. Original datasheet is not attached by default; relevant technical documentation can be provided upon request. Mixed consolidated shipment is available with other ABB medium‑voltage drive spare parts for one‑stop spare‑parts procurement for plant operators.
