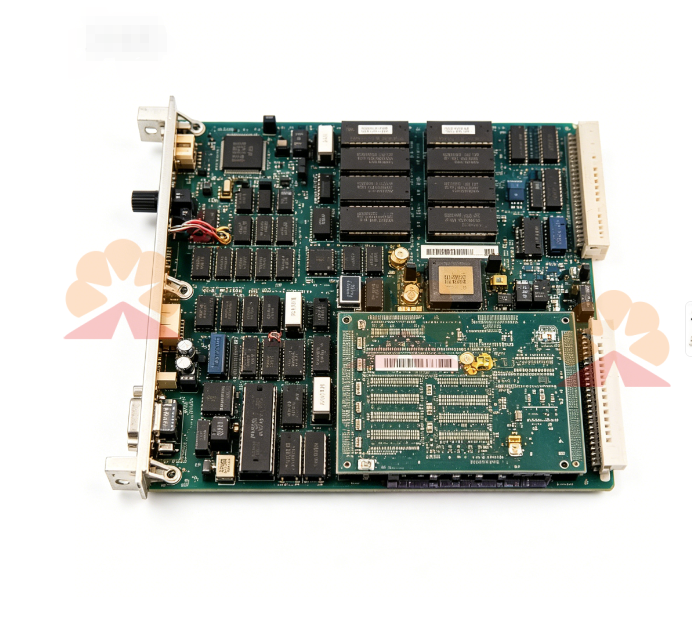

The ABB DSCA120 57520001‑EV is a professional serial interface communication board developed for legacy ABB Advant OCS and S100 DCS control systems. It acts as a critical serial gateway, mainly responsible for RS‑422 and RS‑485 bus data processing. Different from short‑distance RS‑232 boards, this module focuses on long‑distance multi‑node field communication, connecting on‑site intelligent transmitters, analytical instruments, auxiliary controllers and other serial‑based automation devices to the Advant control rack. It independently completes protocol parsing, data packaging and signal conversion, releasing main controller computing resources and ensuring stable cyclic data exchange for multi‑node serial networks.

This euro‑card plug‑in board is installed inside Advant S100 subrack chassis and communicates with other system hardware via the backplane bus. It converts internal parallel bus data into standard RS‑422/RS‑485 differential serial signals for field output; meanwhile, it receives serial feedback signals from field equipment and converts them into bus‑compatible digital data for the main processing unit. On‑board LED indicators clearly display power status, channel link status and communication fault alarms, allowing field maintenance personnel to quickly locate abnormal links and shorten troubleshooting periods during equipment anomalies.

Differential signal circuit and built‑in galvanic isolation greatly improve anti‑interference performance. The hardware can effectively resist electromagnetic noise, ground loop disturbance and surge interference commonly found in heavy‑industry production environments, guaranteeing reliable data transmission over long cable distances. Its standardized euro‑card mechanical structure supports simple disassembly and spare‑parts replacement. When communication faults occur, technicians can complete board swapping rapidly without large‑scale system modification, which is essential for process industries requiring non‑stop production.

It is widely fitted inside automation cabinets of thermal power generation, metallurgical processing, pulp‑paper manufacturing and other heavy‑industry facilities. Typical usage covers serial instrument networking for existing Advant OCS systems, communication function retrofitting of aging control cabinets, and spare‑parts renewal for running production sets. If this board fails, all RS‑422/RS‑485 connected field devices will lose data connection with the DCS rack, leading to loss of instrument measurement data and remote parameter adjustment capability. Equipping qualified spare parts helps enterprises mitigate risks of unplanned production shutdown.

Every ABB DSCA120 57520001‑EV passes comprehensive pre‑delivery functional tests including power‑on aging, serial signal simulation, backplane bus verification and fault‑state simulation inspection. Products use shock‑resistant export‑grade packaging with traceable logistics records. Original user manual is not attached by default, relevant technical documentation can be provided upon request. Mixed consolidated shipment is available alongside other ABB Advant series modules for one‑stop spare‑parts procurement for plant operators.
