IS210WSVOH1AE IS200WSVOH1ADD

IS210WSVOH1AE is a 2-channel Servo Valve Control Module (WSVO) for GE Speedtronic Mark VIe gas/steam turbine control systems, enabling electro-hydraulic servo valve drive and closed-loop position control. It delivers 4–20 mA servo outputs to actuate fuel valves, IGV guide vanes, and extraction valves; supports LVDT/RVDT position feedback with ±0.1% FS accuracy and ≤500 Ω load per channel. Featuring a special assembly version and Class A functional revision, it enhances system stability and reliability. Compatible with simplex/redundant configurations, it is ideal for power and oil & gas turbine control to ensure precise, stable, and safe operation.1. Basic Information Brand: General Electric (GE) Model: IS210WSVOH1AE (Main Servo Driver Assembly), IS200WSVOH1ADD (Matching Servo Terminal Board) Series: GE Speedtronic Mark VI / Mark VIe Gas/Steam Turbine Control System Product Type: Servo Valve Control/Drive Module Assembly (WSVO Series, Servo Valve Output Control) Core Function: Outputs high-precision 4–20mA current to drive electro-hydraulic servo valves (e.g., MOOG valves), collects LVDT/RVDT valve position feedback signals, and implements closed-loop precise control for hydraulic actuators such as fuel valves, governor valves, and guide vanes to ensure stable operation of turbine units. 2. Key Specifications (IS210WSVOH1AE)

Description

1. Basic Information

Brand: General Electric (GE)
Model: IS210WSVOH1AE (Main Servo Driver Assembly), IS200WSVOH1ADD (Matching Servo Terminal Board)
Series: GE Speedtronic Mark VI / Mark VIe Gas/Steam Turbine Control System
Product Type: Servo Valve Control/Drive Module Assembly (WSVO Series, Servo Valve Output Control)
Core Function: Outputs high-precision 4–20mA current to drive electro-hydraulic servo valves (e.g., MOOG valves), collects LVDT/RVDT valve position feedback signals, and implements closed-loop precise control for hydraulic actuators such as fuel valves, governor valves, and guide vanes to ensure stable operation of turbine units.

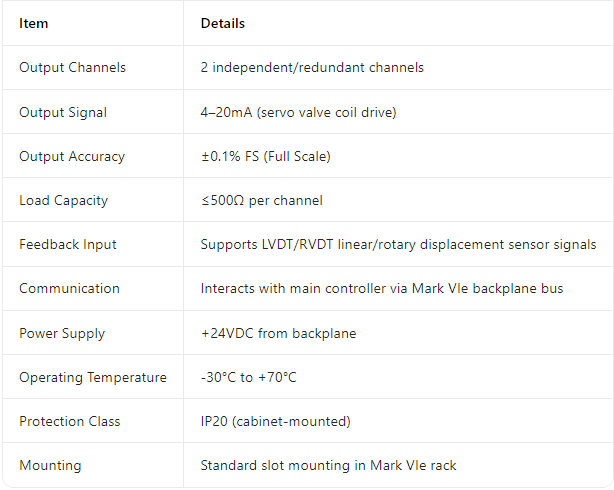

2. Key Specifications (IS210WSVOH1AE)

3. Product Composition & Relationship

IS210WSVOH1AE: Servo driver main assembly with heat sink structure, integrating D/A conversion, PID control, redundancy management, fault diagnosis, and signal conditioning circuits, serving as the core control unit.
IS200WSVOH1ADD: Matching terminal daughter board, responsible for external wiring and terminal distribution of servo valve drive, LVDT/RVDT feedback, power supply, and signals. It is paired with IS210WSVOH1AE to form a complete servo control loop.

4. Core Features

High-Precision Closed-Loop Control: 16-bit resolution, millisecond-level regulation cycle, combined with real-time LVDT/RVDT feedback, achieves micron-level valve positioning and eliminates temperature drift effects.
High Redundancy & Reliability: Supports active-standby redundancy mode with automatic bumpless switching (<50ms switch time). Provides real-time diagnosis and alarm for coil short/open circuit, overcurrent, communication abnormality, etc.
Industrial-Grade Durability: Wide temperature range, vibration-resistant (compliant with IEC 60068), suitable for harsh industrial environments such as power plants and petrochemical facilities, compatible with gas turbines, steam turbines, and combined-cycle units.
System Compatibility: Natively compatible with GE Mark VI/Mark VIe control systems, configurable, monitored, diagnosed, and fault-recorded via ToolboxST software.

5. Typical Applications

Servo drive and closed-loop control for gas turbine fuel control valves, steam turbine governor valves, combined-cycle unit guide vanes/bypass valves, and hydraulic actuators for compressors.
