86485-6S Reliance Electric Control Operator Station

Product Overview

Model Nomenclature

• 86485: Reliance operator station series code (MinPak Plus / V‑S Drive).

• 6: 6‑turn speed potentiometer (0–10 VDC reference).

• S: Left‑hand mounting, standard control layout (start/stop + reverse).

Key Specifications

• Function: Reversing start/stop, speed control, local/remote switch.

• Potentiometer: 6‑turn, 0–10 VDC output, calibrated for Reliance V‑S drives.

• Switches: Momentary start/stop, maintained reverse/forward selector.

• Input Voltage: 115/230 VAC (control circuit, drive‑supplied).

• Mounting: Panel‑mount (cutout: ~152 mm × 76 mm), left‑hand orientation.

• Enclosure: Metal, IP20, industrial‑grade finish.

• Dimensions (approx.): 178 mm × 89 mm × 51 mm (7.0” × 3.5” × 2.0”).

• Weight (approx.): 0.9 kg (2.0 lbs).



Mechanical & Functional Features

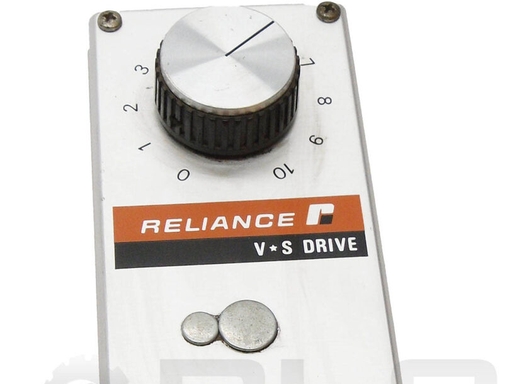

• Front Panel: Heavy‑duty metal with silk‑screen labels; large speed knob, start (green) / stop (red) push buttons, reverse/forward toggle.

• Wiring Terminals: Rear‑mounted screw terminals for control signals, power, and interlocks.

• Compatibility: Direct fit for MinPak Plus, MaxPak, and S4 DC drives; replaces older 86485‑6R / 86485‑15Y stations.

• Environment: –20°C to +60°C, 5–95% RH non‑condensing; vibration resistant (10–1000 Hz, 5 g).

Lifecycle & Warranty

• Status: Original production discontinued (1990s); stocked as new surplus or refurbished.

• Refurbished: Cleaned, tested, contacts inspected, potentiometer calibrated; 12‑month warranty.

• Pricing (2026): Refurbished ~$300 USD; new surplus ~$500 USD.

Applications

• Industrial DC Drives: Conveyors, extruders, mixers, fans, pumps requiring local reversing and speed control.

• Retrofits: Drop‑in replacement for failed operator stations in legacy Reliance drive systems。
