I. Model Explanation

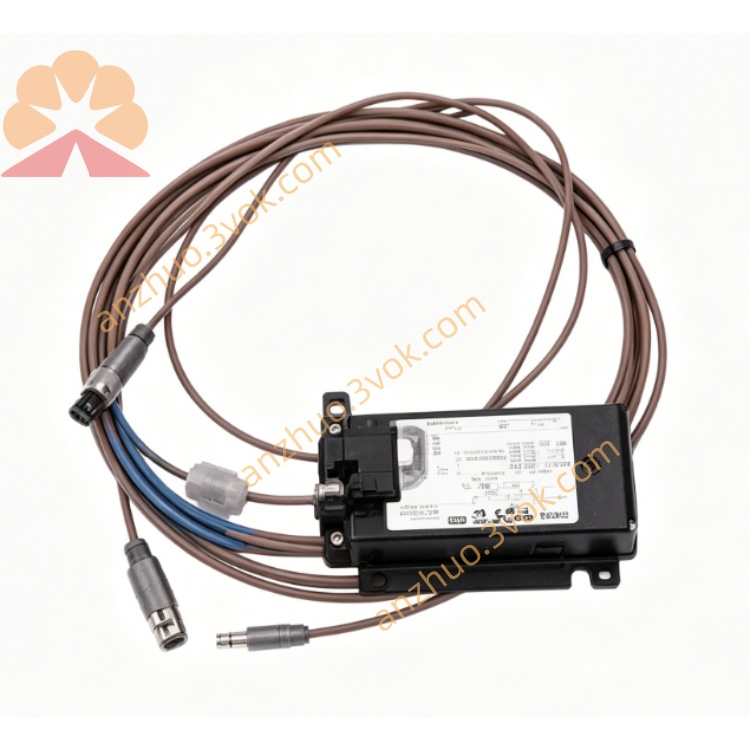

PR6423: Φ8mm threaded eddy current sensor

014: Cable specification 14 meters, armored double-layer shielding

040: Standard calibration code, compatible with standard sensitivity

II. Core Technical Parameters

Probe Diameter: 8mm, M10×1 installation thread

Cable: 14m armored shielded cable, with tensile strength and anti-electromagnetic interference capabilities

Linear Measurement Range: 0 - 1.5mm

Standard Sensitivity: 12V/mm

Compatible Preamplifier: CON021

Recommended Gap for Installation: 2.5mm

Corresponding Voltage at Midpoint (with CON021): -12V

Frequency Response: 0 - 12kHz

DC Resistance of Coil: 4 - 6Ω

Insulation Resistance: > 100MΩ

Probe Working Temperature: -35℃ - +150℃

Protection Grade: IP67

Compatible Target Material: 42CrMo4 ferromagnetic alloy steel, surface roughness ≤ Ra3.2μm

III. Companion Usage

Must be Complemented: PR6423/014-040 + CON021

Power Supply: Preamplifier -24VDC (-18 to -30VDC)

IV. Installation and Debugging Key Points

Standard Installation Gap: 2.5mm, adjust to preamplifier output -12V for locking

Align and lock the LEMO aviation connector to prevent loosening and jumping

The shielding layer is grounded only at a single point on the cabinet side, while the probe end is left floating

14-meter-long cable should be laid away from power cables and frequency converters to reduce interference

V. Applicable Scenarios

Steam turbines, compressors, fans, gas turbines

Used for shaft vibration, shaft displacement, eccentricity, and phase monitoring

Compatible with MMS6000 / AMS6500 TSI systems
