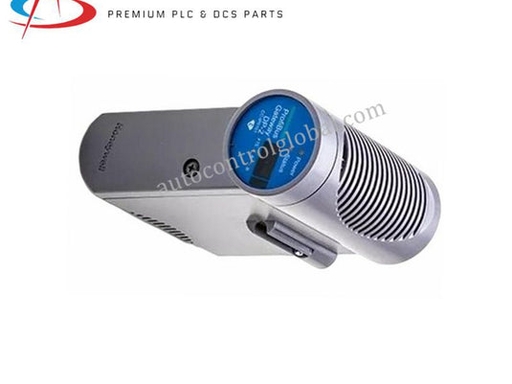

Model Interpretation
CC：C-Series PKS I/O family code；IP：Industrial Profibus gateway type；0101：single-channel Profibus DP master version number。
Technical Specifications
Power Supply：24VDC(18~32VDC), typical power consumption7W
Communication：1×9Pin D-Sub Profibus DP interface, baud rate9.6k~12Mbps configurable, max 127 DP slave per bus segment
Network：Dual redundant FTE RJ45 Ethernet port(10/100M), Modbus TCP/OPC UA compatible
Ambient：-40℃~+70℃ operation,5%~95%RH non-condensing; Certification UL/CE/ATEX Zone2
Dimension：122×92×78mm, net weight0.52kg
Interface and Communication Configuration
Front panel：Power/Run/Fault three LED indicators; rear side backplane gold finger for C300 IOTA base connection; external DP wiring via DB9 shield terminal。
Core Function
Profibus DP master protocol conversion, collect all DP slave running data and upload to C300 main controller;
Redundant FTE network communication, support hot standby switch for system fault tolerance;
Channel self-diagnosis for DP bus short/open circuit, upload network failure alarm to HMI station;
Cross-protocol data forwarding between DCS control layer and third-party field control equipment。
Applicable Scenarios
Petrochemical refining DCS cabinet, thermal power plant boiler/steam turbine PKS control system, chemical fertilizer continuous process control rack, match C300 controller + CC-PAIH01 analog input card combination configuration。
Operation and Maintenance Instructions
Install on standard C300 IOTA base slot, DP bus cable adopt special shield twisted-pair with terminal resistance; annual check DB9 connector crimp status; module supports hot plug replacement without cabinet power off。
CC-PAIH01（HART High Level Analog Input Module, PN:51405038-175）
Product Introduction
CC-PAIH01 is 16-channel HART-enabled high-precision analog input module for Honeywell C300 PKS DCS, collects field 4~20mA/1~5VDC transmitter signal, built-in HART7 protocol to realize smart instrument remote parameter reading, core analog acquisition unit of process control system。
Model Interpretation
CC：C-series I/O series；PAIH：Process Analog Input with HART；01：16-channel single module specification code。
Technical Specifications
Power：Backplane powered 24VDC, typical power consumption4.5W
Channel：16 single-ended /8 differential configurable input; signal range4~20mA,1~5V,±10VDC
Precision：24bit ADC, accuracy ±0.05%FS, full-channel refresh rate50Hz; channel isolation1500VAC
HART：Compliant HART7, point-to-point/multidrop communication for smart transmitter calibration/DIAG
Ambient：-40℃~+70℃ working temp; SIL2, ATEX/IECEx hazardous area certification
Dimension：119×88×86mm, weight0.49kg
Interface and Communication Configuration
Front：Power/Status/HART three status LED; rear backplane connector with matched terminal base IOTA, all field instrument wiring connect to supporting terminal block。
Core Function
Real-time collection pressure/temp/flow 4~20mA analog signal, convert to digital value and send to C300 CPU for PID control;
HART digital communication: remote read transmitter range, fault code, realize on-line parameter modification without site access;
Automatic open-circuit detection for field wiring, trigger channel fault alarm once wire break/overrange happens;
Compatible two-wire loop-powered and external-powered field transmitters widely used in process industry。
Applicable Scenarios
Oil&gas refining unit, coal chemical continuous production line, thermal power plant DCS analog signal cabinet, commonly collocate with CC-IP0101 gateway and digital I/O modules to build complete PKS control system。
Operation and Maintenance Instructions
Fixed on dedicated C300 IOTA base, field signal cable shield single-end grounding; regular annual inspect loop load resistance(250Ω); hot-swap available during cabinet running, no extra program download after replacement。
